Monoblock Channel Car Amplifier

Car Amplifier Class D

Features:

*Small size,
*high power,
*very suitable for subwoofer.

INQUIRE NOW

SEND ENQUIRY

Specifications

Suoer Monoblock Channel Car Amplifier

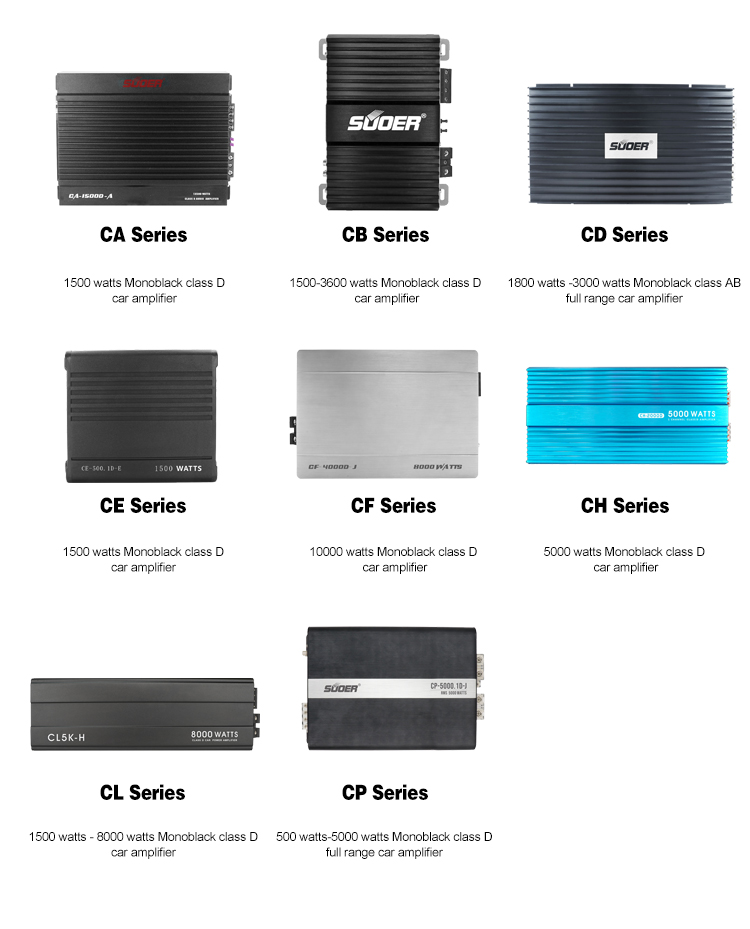

CA-Series

style	Monoblock channel Class D
Input sentivity	0.2-6V
SNR	＞101DB
Power	120W/4Ω；1350W/2Ω 1*500W/1Ω
Frequency	10hz-320hz
Low-pass frequency	30hz-250hz
High-pass frequency	NA
Bass boost	0-12db
Subbass frequency	30hz-250hz
THD	＜0.01%
Fuse	30A*2
Brand	Suoer
Size	31823050mm
Weight	2.07kg

CB-Series

Style	Monoblock channel Class D	Monoblock channel Class D	Monoblock channel Class D
Input Sentivity	0.18-6V	0.18-6V	0.18-6V
SNR	＞103DB	＞103DB	＞103DB
RMS	1*500W/1Ω	1*800W/1Ω	1*1200W/1Ω
Frequency	15hz-250hz	15hz-250hz	15hz-250hz
Low-pass frequency	25hz-250hz	25hz-250hz	25hz-250hz
High-pass frequency	NA	NA	NA
Bass boost	0-12db	0-12db	0-12db
Subbass frequency	15hz-55hz	15hz-55hz	15hz-55hz
THD	＜0.01%	＜0.01%	＜0.01%
Fuse	25A*2	30A*2	30A*4
Size	14523057mm	18523057mm	23523057mm
Weight	1.78kg	2.09kg	2.42kg

CD-Series

Style	Monoblock channel full range	Monoblock channel full range
Input Sentivity	0.2-6V	0.2-6V
SNR	＞92DB	＞92DB
RMS	1*600W/1Ω	1*1000W/1Ω
Frequency	10hz-47khz	10hz-47khz
Low-pass frequency	925hz-4khz	925hz-4khz
High-pass frequency	700hz-4.1khz	700hz-4.1khz
Bass boost	0-12db	0-12db
Subbass frequency	15hz-55hz	15hz-55hz
THD	＜0.01%	＜0.01%
Fuse	25A*2	30A*2
Size	40222560mm	50222560mm
Weight	4.3kg	5.3kg

CF-Series

Style	Monoblock channel Class D
Input sentivity	0.3-6V
SNR	＞96DB
Power	1850W/4Ω；11630W/2Ω 12976W/1Ω 13587W/1Ω
Frequency	5hz-22Khz
Low-pass frequency	60hz-22Khz
High-pass frequency	5HZ-250HZ
Bass boost	1-12db
Subbass frequency	30hz-250hz
THD	＜0.3%
Brand	Suoer
Size	33022555mm
Weight	3.75kg

CH-Series

Style	Monoblock channel Class D
Input sentivity	0.23-6V
SNR	＞103DB
Power	1650W/4Ω；11150W/2Ω 1*2000W/1Ω
Frequency	15hz-250Khz
Low-pass frequency	25hz-250hz
High-pass frequency	NA
Bass boost	1-12db
Subbass frequency	15hz-55db
THD	＜0.01%
Brand	Suoer
Size	44723060mm
Weight	7.5kg

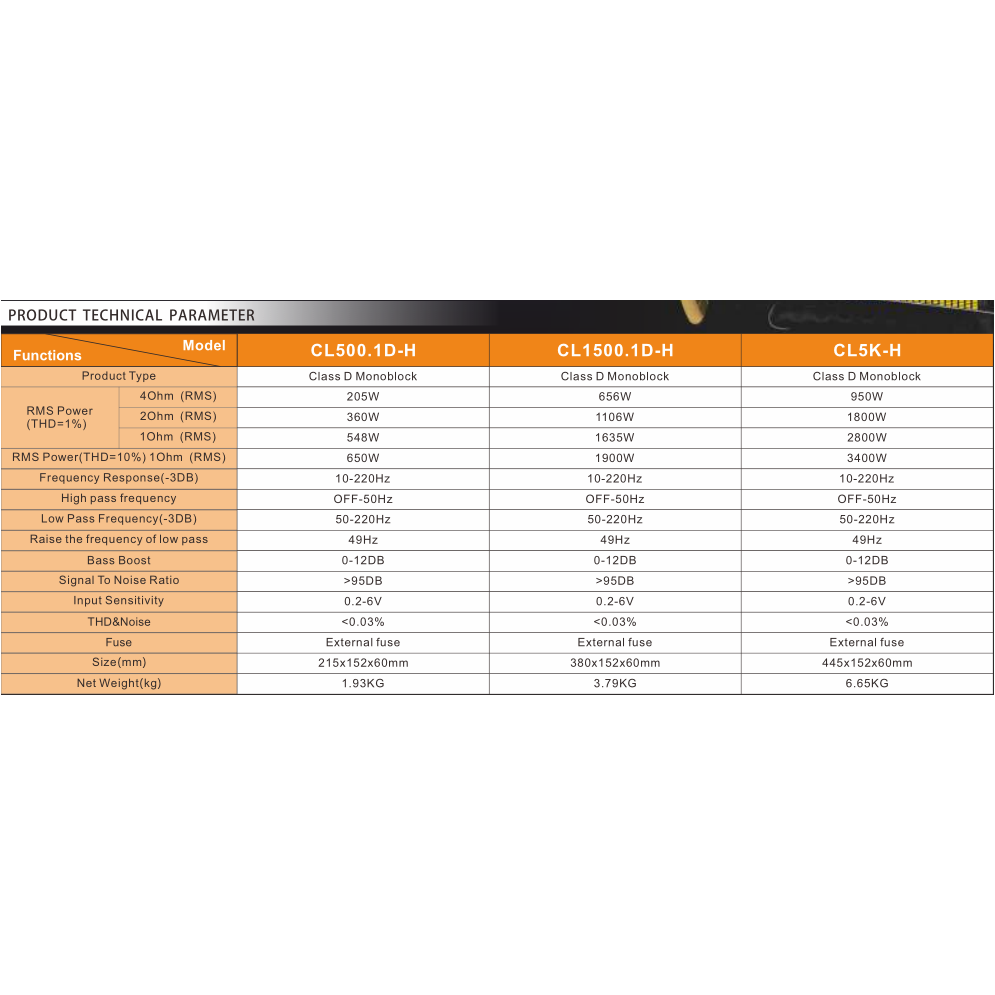

CL-Series

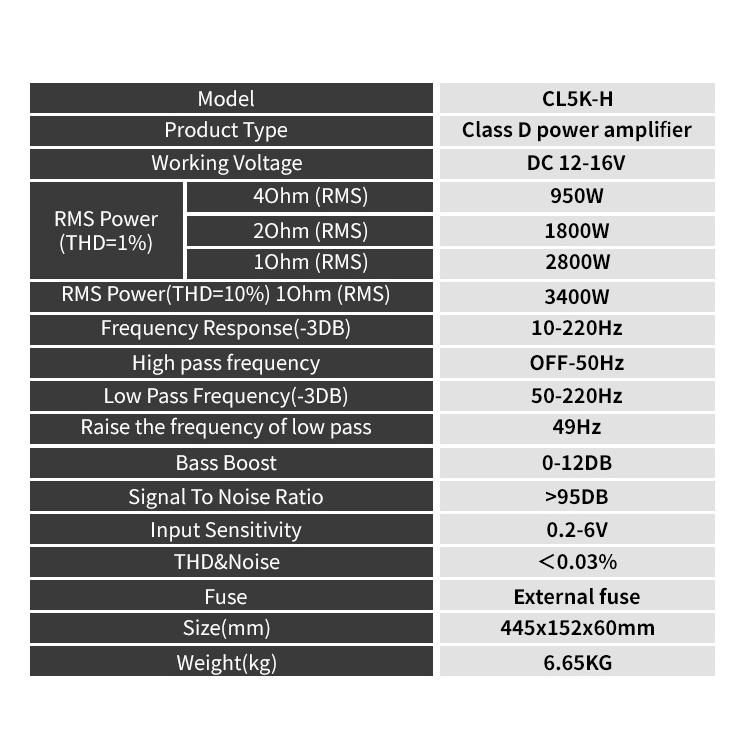

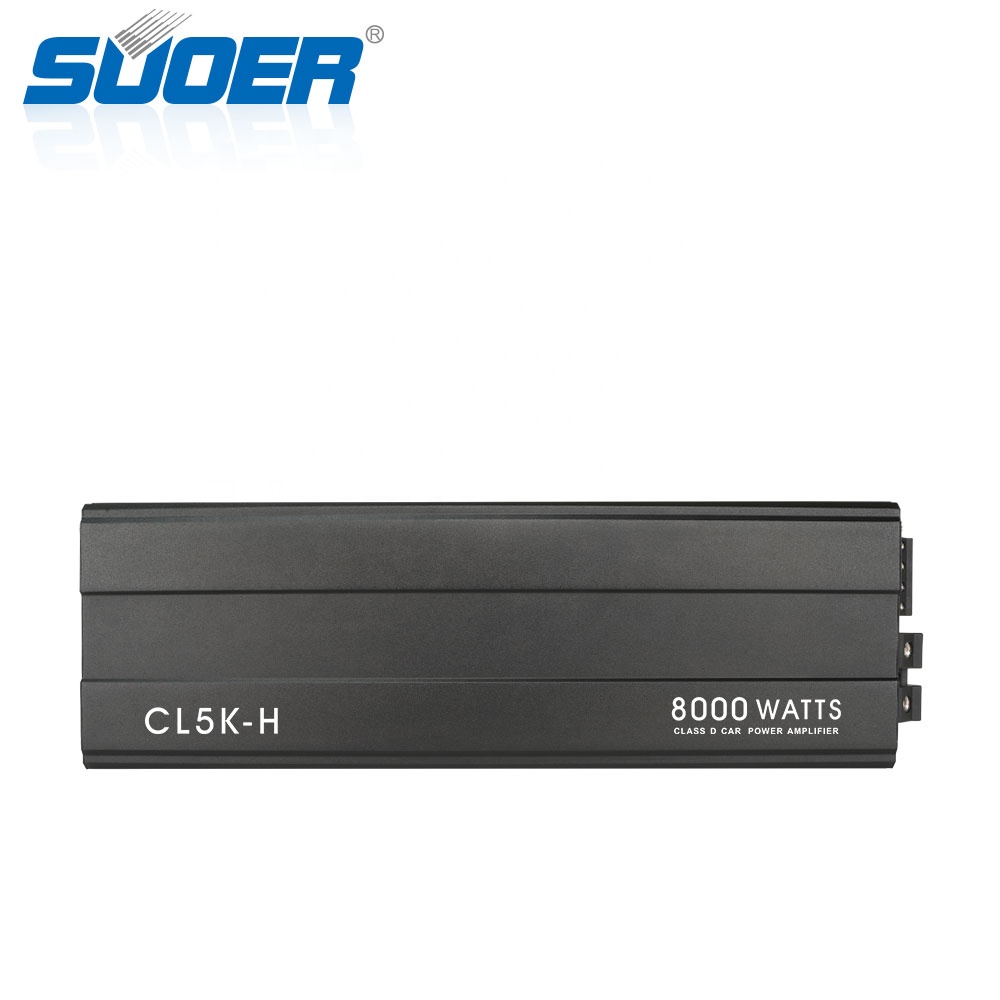

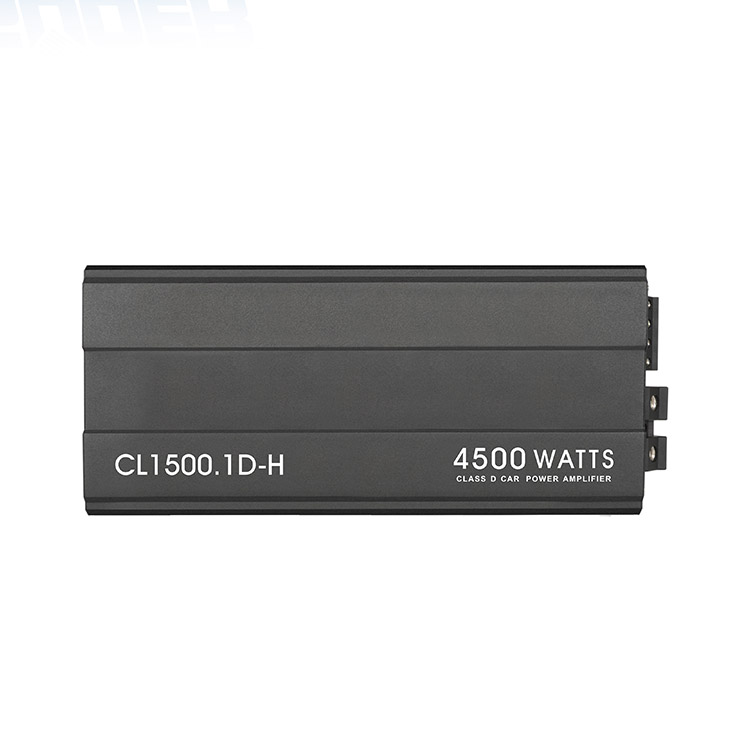

Style	CL500.1D-H	CL1500.1D-H	CL-5K
Input sentivity	0.2-5V	0.2-6V	0.2-6V
SNR	＞96DB	＞96DB	＞96DB
Power	1*540W/1Ω	1*1900W/1	1*3350W/1
Frequency	10hz-220hz	10hz-220hz	10hz-220hz
Low-pass frequency	50hz-220hz	50hz-220hz	50hz-220hz
High-pass frequency	Off-50HZ	Off-50HZ	Off-50HZ
Bass boost	0-12db	0-12db	0-12db
Subbass frequency	45db	45db	45db
THD	＜0.03%	＜0.03%	＜0.03%
Brand	Suoer	Suoer	Suoer

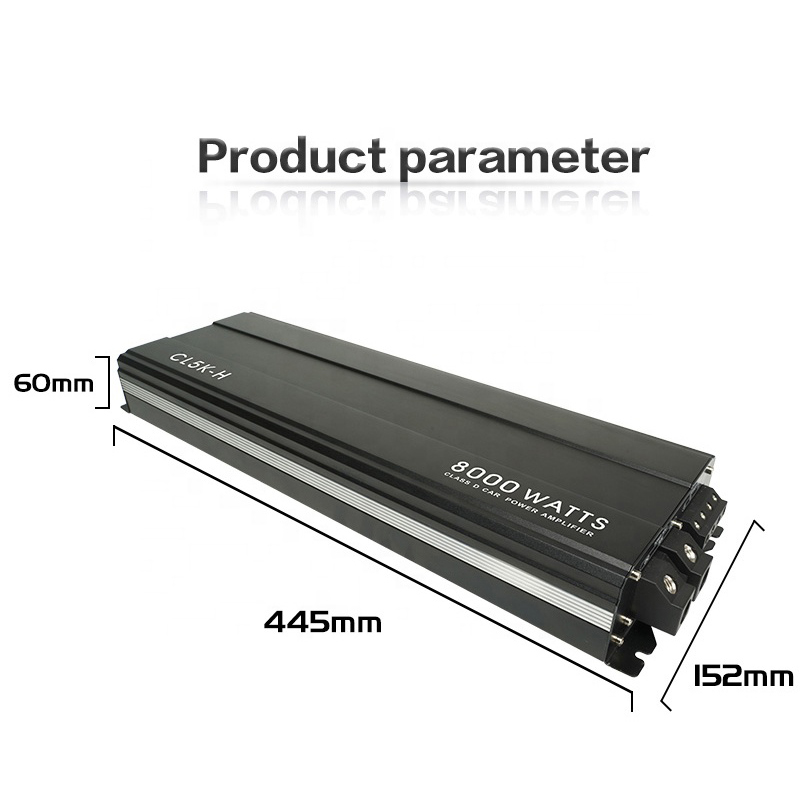

Size	21515260mm	38015260mm	45515260mm
Weight	1.93kg	3.79kg	6.65kg

CP-Series

Style	Monoblock channel full range
Input sentivity	0.2-6V
SNR	＞103DB
Power	12120W/4Ω；13600W/2Ω 1*5012W/1Ω
Frequency	10hz-20Khz
Low-pass frequency	80hz-20Khz
High-pass frequency	15HZ-80HZ
Bass boost	49hz
THD	＜0.01%
Brand	Suoer
Size	26520367mm
Weight	4kg

Car Amplifier Test Video

FAQ

1.Are you manufacturer or trading company?

RE:We are manufacturer located in Foshan,Guangdong province,covering a land area of 20,000square meters, with standard workshop,advanced production equipment and world-leading facilities.

2.What is your advantage?

RE:We develop a powerful R&D team to ensure the innovation and strict inspection process in workshop to ensure the quality.

3.What is your MOQ?

RE:No quantity requirement on Suoer logo,for customized Logo(ODM/OEM)based on 300 pcs each model.

4.Can I take a sample to test before bulk order?

RE:Yes of course,and customer is responsible for the sample charges and shipping cost.

5.How long will the sample be available?

RE:In 7 days after full payment be done.

6.What's your payment terms on mass order?

RE:30% deposit and balanced be paid before loading;for customized Logo 50% as deposit.

7.Do you have any certification for your products?

RE:We have ISO9001:2000,CE,ROHS for all of our products.
