CG-120.4-F

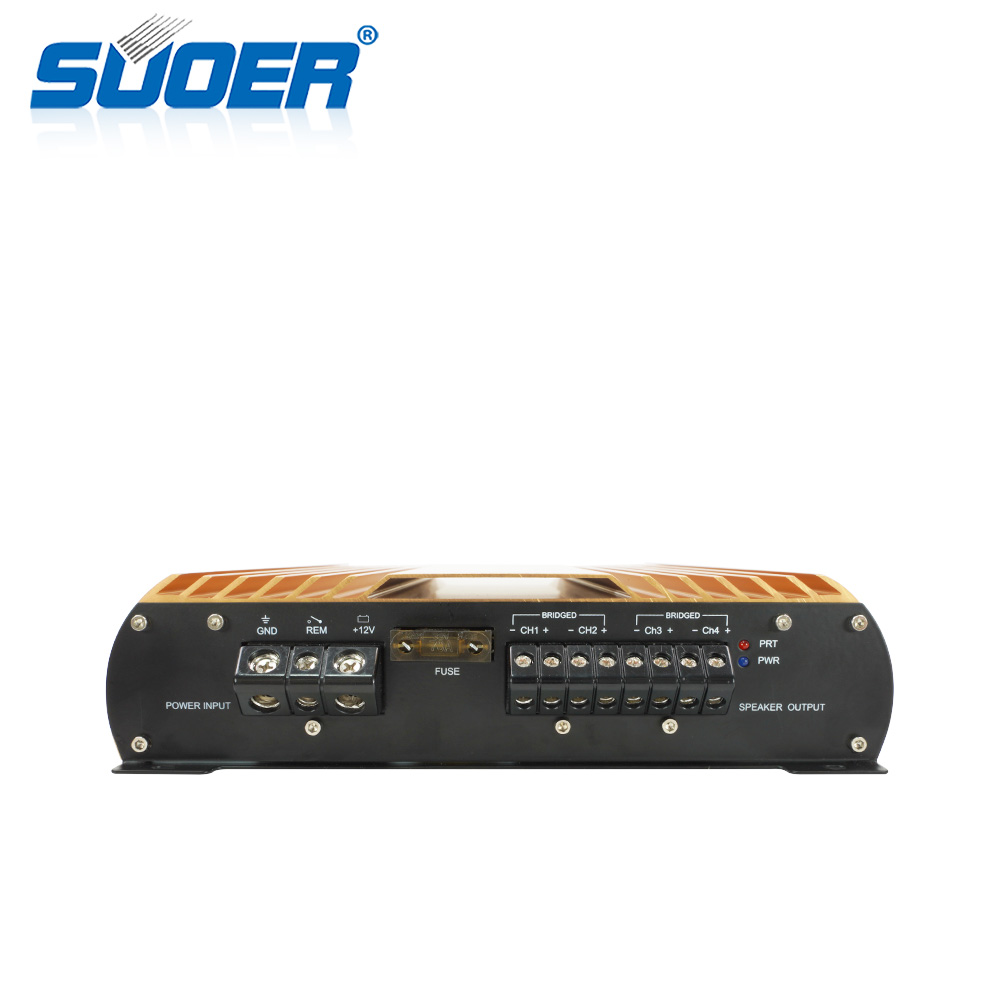

Suoer CG-120.4-F car power amplifier 4 channel AB full frequency amplifier

CG-120.4-F

Car Amplifier Full Frequency

Features:

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

CG series CG-120.4-F CG-150.4-F CG-500.5D-F
Output 4 channels full frequency 4 channels full frequency 5 channels full frequency
Type Class AB Class AB Class D
Input sentivity 0.2~6v 0.2~6v 0.2~6v
SNR(signalto noise Ratio) >92DB >92DB >92DB
(RMS)Power(THD=1%)

4*130W/4Ω                            4*180w/2Ω

2*280W/Bridged 4Ω

4*150W/4Ω                            4*260w/2Ω

2*390W/Bridged 4Ω

4*120W+1*500W/4Ω 4*220W+1*650W/2Ω

2*450W/Bridged 4Ω
Frequency Response(-3DB) 15HZ~30KHZ 15HZ~30KHZ 13HZ~33KHZ
Low-pass Frequency(-3DB) 18HZ~2.5KHZ                     18HZ~2.5KHZ      14HZ~8KHZ
High-pass Frequency(-3DB) 18HZ~2.5KHZ      18HZ~2.5KHZ      16HZ~7.6KHZ
Bass boost(-3DB) 49Hz 49Hz 49Hz
THD(total harmonic distortion) <0.01% <0.01% <0.01%
Fuse 1*70A 1*100A 1*100A
Power supply 14.4V(9V~15V) NEGATIVE CONNECTIVE THE GROUND OF THE CAR
Size(mm) 363*240*60MM 429*240*60MM 363*240*60MM
Weight(Kg) 3.65KG 4.45KG 4KG

CG-120.4-F
The advantages of this product are class ab,full range amplifier,double-side circuit board,high power, good hear dissipation
